GTIN : 8682955163522
The HUBBOX RC1 is a high-reliability, managed Relay Controller with 10 Inputs/8 Outputs (10IN/8OUT), designed for Industrial IoT (IIoT) projects. It integrates seamlessly with PLC and SCADA systems via the Modbus TCP protocol, enabling complete remote control over field equipment. Featuring an industrial metal housing and wide temperature tolerance, the RC1 delivers uninterrupted, intelligent digital control even in the harshest environments.
- CONNECTIVITY
- Ethernet 10/100Mbps
- PROTOKOL
- MODBUS TCP
- MODBUS TCP
- MOUNTING
- DIN rail is ready for installation.
- WARANTY
- 5 YEARS
- DETAILS
- TECHNICAL FEATURES
- DOWNLOADS
- SUPPORT

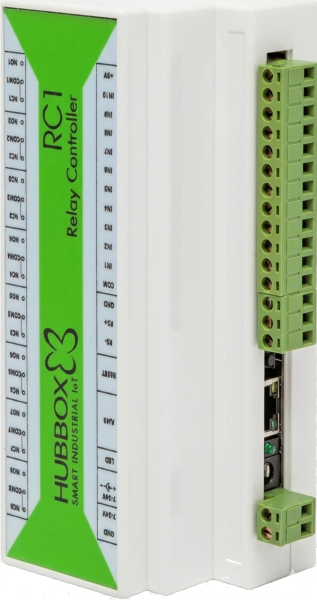

HUBBOX RC1 Relay Controller
The Powerhouse of Digital Control and High-Density Supervision
The HUBBOX RC1 is a high-reliability managed 10 Input / 8 Output relay controller designed for Industrial IoT (IIoT) projects. It is the fastest way to modernize your digital systems via the Modbus TCP protocol.
Why Choose the HUBBOX RC1?
Manage 10 Digital Inputs (DI) and 8 Relay Outputs (DO) in a single device for comprehensive field supervision.
Safely control powerful industrial loads with a 10A / 230V switching capacity per relay channel.
Operates flawlessly from -40°C to +85°C, ensuring performance from freezing cold to scorching heat.
Compact housing with high channel density saves space in control panels and reduces cabling clutter.
Seamless IIoT Integration
With Modbus TCP support, the HUBBOX RC1 communicates instantly with PLCs, SCADA systems, and Node-RED. Give your existing system smart digital control capabilities in seconds.
Technical Capabilities
- Inputs: 10 x Digital Inputs (DI) for extensive monitoring capacity.
- Outputs: 8 x Relay Outputs (DO) - High-current protected.
- Connectivity: Modbus TCP via 10/100 Mbps Ethernet port.
- Easy Wiring: Plug-and-play terminal blocks for quick installation.
Operational Reliability
- Wide Power Supply: Flexible 7V - 24V DC power input.
- Instant Diagnostics: Independent status LEDs for every channel.
- Management Tool: Easy configuration and testing with RC1 Manager software.
- Assurance: Industrial-grade quality with a 5-Year warranty.
At the Peak of Smart Digital Control
The HUBBOX RC1 is designed for central management of all field digital data and actuators. Maximize operational efficiency by achieving more control with fewer devices.
Need a quote for your high-density automation project?
Request a QuoteHUBBOX RC1 Relay Controller
| Category | Feature | Value / Description |
|---|---|---|
| Hardware & Power | Product Code | HUBBOX-RC1 |
| Product Name | Relay Controller (10DI / 8DO) | |
| Power Input | 7V - 24V DC | |
| Input / Output (I/O) | Relay Outputs (DO) | 8 Pieces (10A / 230V) |
| Digital Inputs (DI) | 10 Pieces | |
| Communication | Connection Port | 10/100 Mbps Ethernet |
| Protocol | MODBUS TCP | |
| Physical | Working Temp. | -40°C / +85°C (Endüstriyel Sınıf) |
| Housing Type | DIN Rail Plastic Box | |
| Terminal Type | Plug-in Terminal (5.08mm) | |
| Dimensions (mm) | 160 x 115 x 60 |
