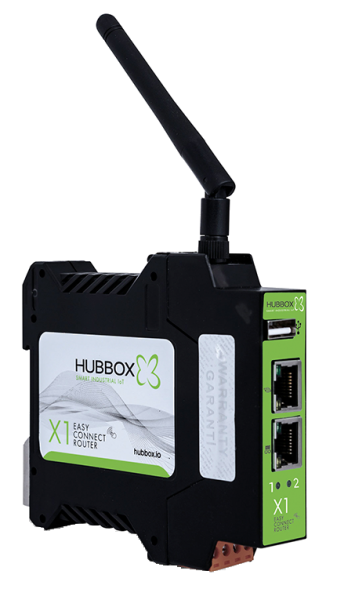

HUBBOX Connect X1 4G/LTE
Product Code : HUBBOX-CX-4G
Firmware Code :
GTIP : 851762009000
HS : 8682955163508
HS : 8682955163508
HUBBOX Connect X1 4G/LTE is the most economical and reliable way to ensure uninterrupted access in industrial fields, thanks to its compact design and powerful mobile connectivity capabilities. With integrated LTE Cat 4 support that eliminates infrastructure constraints, it securely brings even your most remote machines online in seconds.
- CONNECTIVITY
- CAT4 4G/LTE
2 x Ethernet 100Mbps
Wi-Fi - 2.4G
USB 2.0
USB with RS485, RS232, RS422 support.
- CAT4 4G/LTE
- I/O OPTIONS
- DI - 1 Piece
DO - 1 Piece
- DI - 1 Piece
- REMOTE ACCESS
- VPN
Port Forwarding
USB over IP
- VPN
- RAM / STORAGE
- 512 MB / 8 GB(Default)
512 MB / 16 GB
- 512 MB / 8 GB(Default)
- DETAILS
- TECHNICAL FEATURES
- DOWNLOADS
- SUPPORT
Details
Why Choose HUBBOX Connect X1 4G/LTE?
- Connectivity Everywhere: Provides high-speed internet with just a SIM card in areas without wired infrastructure, such as solar power plants or mobile units.
- Critical System Redundancy: Prevents operational downtime and guarantees business continuity by automatically switching to the 4G network if your primary internet connection fails.
- Secure Remote Access: Access your PLCs, HMIs, or sensors from anywhere in the world via secure VPN tunnels. Perform remote maintenance and software updates without leaving your office.
- Industrial Durability: Offers stable performance even in the harshest control panel conditions with its compact DIN rail mount design and wide operating temperature range.
Despite its small footprint, HUBBOX Connect X1 4G/LTE is your most practical field assistant in your digital transformation journey, offering massive connectivity solutions.
Technical Specifications
| Category | Feature | Specification / Value |
|---|---|---|
| Model and Type | Model | HUBBOX Connect X1 4G/LTE |
| Type | IIoT - HUBBOX - DIN Rail Mount (Router/Gateway) | |
| 4G / LTE Specifications | LTE Category | LTE Cat 4 (150 Mbps DL / 50 Mbps UL) |
| 4G Band Support (LTE-FDD) | B1 / B3 / B5 / B7 / B8 / B20 (Global & Europe) | |
| 4G Band Support (LTE-TDD) | B38 / B40 / B41 | |
| Backward Compatibility | 3G (HSPA+/UMTS) and 2G (GSM/GPRS/EDGE) Auto-fallback | |
| Protocol Support | TCP/UDP, PPP, FTP, HTTP/HTTPS, MQTT, SSL/TLS | |
| Processor and Memory | CPU Speed | Quad-Core A55 1.2 GHz |
| RAM | 512MB | |
| Internal Storage | 8GB (Maximum 32GB) | |
| Connectivity Features | Ethernet Ports | 1x WAN/LAN, 1x LAN (Total 2 Ports) |
| Wireless | 1x Wi-Fi 2.4 GHz | |
| Digital Input/Output | 1x DI, 1x DO | |
| USB Port | 1x USB 2.0 | |
| External Communication | Integrated 4G/LTE Cat 4 | |
| Physical and Environmental | Voltage (Power Supply) | 9-30V DC |
| Operating Temperature | -25°C to +60°C | |
| Dimensions (mm, Net) | 113.5 x 100 x 22 | |
| Dimensions (mm, With Box) | 145 x 120 x 40 | |
| Weight (Net) | 0.33 kg | |
| Weight (Gross) | 0.40 kg |
