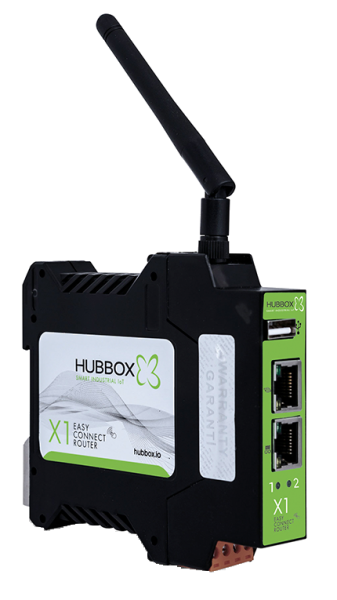

HUBBOX Connect X1
Product Code : HUBBOX-CX3
Firmware Code :
GTIP : 851762009000
HS : 8682955163508
HS : 8682955163508
Accelerates the transition to Industry 4.0. Collects data directly from the production floor. Sends real-time alerts from the field. Reduces the number of faults and downtimes. Communicates with ERP and other applications. Creates M2M (Machine-to-Machine) networks. Provides direct access to machines.
- CONNECTIVITY
- 2 x Ethernet 100Mbps
Wi-Fi - 2.4G
USB 2.0
USB with RS485, RS232, RS422 support.
- 2 x Ethernet 100Mbps
- I/O OPTIONS
- DI - 1 Piece
DO - 1 Piece
- DI - 1 Piece
- REMOTE ACCESS
- VPN
Port Forwarding
USB over IP
- VPN
- RAM / STORAGE
- 512 MB / 8 GB(Default)
512 MB / 16 GB
- 512 MB / 8 GB(Default)
- DETAILS
- TECHNICAL FEATURES
- DOWNLOADS
- SUPPORT
Details
Connectivity and Integration
- Seamless integration with ERP, MES, and other production software
- Support for M2M (Machine-to-Machine) communication
- Compatibility with IoT devices
Data Collection and Analysis
- Real-time data collection from the production floor
- Instant status reporting and analysis capabilities
- Tracking of faults and downtime records
Performance and Efficiency
- Increasing productivity by minimizing downtime
- Optimizing machine efficiency
- Taking quick action through real-time alerts
HUBBOX Connect X1 accelerates your Industry 4.0 transformation while making your operations more efficient and sustainable.
Technical Specifications
| Category | Feature | Specification / Value |
|---|---|---|
| Model and Type | Model | HUBBOX Connect X1 |
| Type | IIoT - HUBBOX - DIN Rail Mount (Router/Gateway) | |
| Processor and Memory | CPU Speed | Quad-Core A55 1.2 GHz |
| RAM | 512MB | |
| Internal Storage | 8GB (Maximum 32GB) | |
| Connectivity Features | Ethernet Ports | 1x WAN/LAN, 1x LAN (Total 2 Ports) |
| Wireless | 1x Wi-Fi 2.4 GHz | |
| Digital Input/Output | 1x DI, 1x DO | |
| USB Port | 1x USB 2.0 | |
| Physical and Environmental | Voltage (Power Supply) | 12-30V DC |
| Operating Temperature | -25°C to +60°C | |
| Dimensions (mm, Net) | 113.5 x 100 x 22 | |
| Dimensions (mm, With Box) | 145 x 120 x 40 | |
| Weight (Net) | 0.33 kg | |
| Weight (Gross) | 0.40 kg |
